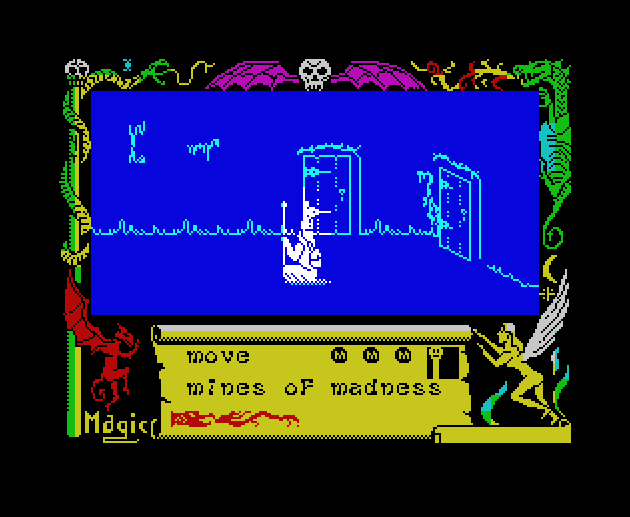

Door frames & scenery brickwork from cavern levels e.g. Mines of Madness. As with the 'brick level' connectors (40392), flipped/mirrored versions of the side wall and corner graphics are created when needed.
|
||||
| 40771 | DEFB %00000001 | Graphic properties | ||
|
||||
| 40772 | DEFB 4 | Graphic consists of 4 tiles | ||
| 40773 | DEFB 240 | Horizontal (X axis) pixel offset (-16 pixels) | ||
| 40774 | DEFB 254 | Vertical (Y axis) pixel offset (-2 pixels) | ||
| 40775 | DEFB 3 | Graphic consists of 3 bytes | ||
| 40776 | DEFB 21,22,248 |  |
||
| 40779 | DEFB 248 | Horizontal (X axis) pixel offset (-8 pixels) | ||
| 40780 | DEFB 249 | Vertical (Y axis) pixel offset (-7 pixels) | ||
| 40781 | DEFB 8 | Graphic consists of 8 bytes | ||
| 40782 | DEFB 64,160,160,166,166,38,41,16 |  |
||
| 40790 | DEFB 0 | Horizontal (X axis) pixel offset (0 pixels) | ||
| 40791 | DEFB 254 | Vertical (Y axis) pixel offset (-2 pixels) | ||
| 40792 | DEFB 3 | Graphic consists of 3 bytes | ||
| 40793 | DEFB 144,72,183 |  |
||
| 40796 | DEFB 8 | Horizontal (X axis) pixel offset (+8 pixels) | ||
| 40797 | DEFB 252 | Vertical (Y axis) pixel offset (-4 pixels) | ||
| 40798 | DEFB 5 | Graphic consists of 5 bytes | ||
| 40799 | DEFB 64,96,82,82,141 |  |
||
|
Side wall-floor connectors
|
||||
| 40804 | DEFB %00100001 | Graphic properties | ||
| 40805 | DEFB 4 | Graphic consists of 4 tiles | ||
| 40806 | DEFB 240 | Horizontal (X axis) pixel offset (-16 pixels) | ||
| 40807 | DEFB 240 | Vertical (Y axis) pixel offset (-16 pixels) | ||
| 40808 | DEFB 5 | Graphic consists of 5 bytes | ||
| 40809 | DEFB 144,114,22,10,1 |  |
||
| 40814 | DEFB 248 | Horizontal (X axis) pixel offset (-8 pixels) | ||
| 40815 | DEFB 244 | Vertical (Y axis) pixel offset (-12 pixels) | ||
| 40816 | DEFB 4 | Graphic consists of 4 bytes | ||
| 40817 | DEFB 16,232,8,7 |  |
||
| 40821 | DEFB 0 | Horizontal (X axis) pixel offset (0 pixels) | ||
| 40822 | DEFB 248 | Vertical (Y axis) pixel offset (-8 pixels) | ||
| 40823 | DEFB 3 | Graphic consists of 3 bytes | ||
| 40824 | DEFB 128,72,119 |  |
||
| 40827 | DEFB 8 | Horizontal (X axis) pixel offset (+8 pixels) | ||
| 40828 | DEFB 250 | Vertical (Y axis) pixel offset (-6 pixels) | ||
| 40829 | DEFB 5 | Graphic consists of 5 bytes | ||
| 40830 | DEFB 192,40,20,2,1 |  |
||
|
CORNER WALL SECTION
|
||||
| 40835 | DEFB %00100001 | Graphic properties | ||
| 40836 | DEFB 2 | Graphic consists of 2 tiles | ||
| 40837 | DEFB 253 | Horizontal (X axis) pixel offset (-3 pixels) | ||
| 40838 | DEFB 225 | Vertical (Y axis) pixel offset (-31 pixels) | ||
| 40839 | DEFB 16 | Graphic consists of 16 bytes | ||
| 40840 | DEFB 228,254,83,83,67,67,6,4 |  |
||
| 40848 | DEFB 4,6,6,6,4,25,27,11 | |||
| 40856 | DEFB 0 | Horizontal (X axis) pixel offset (0 pixels) | ||
| 40857 | DEFB 241 | Vertical (Y axis) pixel offset (-15 pixels) | ||
| 40858 | DEFB 17 | Graphic consists of 17 bytes | ||
| 40859 | DEFB 212,150,27,27,18,49,59,29 |  |
||
| 40867 | DEFB 13,9,10,1,9,9,217,117 | |||
| 40875 | DEFB 7 | |||
